Tip

Azure management groups ease policy enforcement

It isn't easy to manage Azure subscriptions, but with management groups, admins can now simplify policy enforcement on a larger scale.

IT organizations that want refined access control across an enterprise, or on a group-by-group or hierarchical basis, can now do so with Microsoft Azure management groups.

Azure cloud services are subscription-based, wherein the subscription defines a set of resources available to the user via resource tags, and tie a user's service consumption to billing information and a payment method. Things get more complicated in larger organizations with a Microsoft Enterprise Agreement (EA): Subscriptions are enhanced to provide a four-level hierarchical structure where the organization can consolidate multiple accounts and subscriptions into various departments and all departments into a single organizational enrollment. Azure subscriptions help manage cloud costs and usage. For more control, enterprises can use Azure management groups to set account policies.

Enterprise IT organizations need to centralize control over resource access and compliance policies across various roles. Azure management groups define and enforce policies to multiple subscriptions and their associated resources via a hierarchical structure, similar to Azure subscriptions and enrollments.

Azure management group structure

Azure management groups belong in an Azure administrator's toolkit, particularly at organizations that pay for many subscriptions under a Microsoft EA. The hierarchical structure in Azure management groups proves unnecessary for small teams or independent users, such as developers.

The groups work similarly to Active Directory (AD) security groups for Windows Server but tailored for public cloud. The cloud administrator bundles logically related Azure subscriptions into a single management unit, with policies that apply to every group member. As with AD groups, Azure management groups have policies that persist from parent to subgroups and subscriptions automatically. For example, a global Azure administrator can define a policy that limits the type of VM instances available and further define that instances can only be created in two Azure regions. This policy automatically applies to every management group, subscription and resource hierarchically under the global admin's group.

At the top of the hierarchy is a root management group that sets policies for the entire organization. The AD administrator or a similar IT professional should manage the root group; no one has default access to it. After the first Azure management group is created, the chosen root manager can elevate himself to the role. Once they have access, administrators can assign management permissions to others. New subscriptions are automatically members of the root management group but must be assigned to other groups.

Azure management groups also support the service's role-based access control (RBAC), a set of access and security policies for Azure resources that follow hierarchical rules of group precedence. Any RBAC role assigned to a parent group automatically applies to subgroups below it. RBAC permissions use the security principle of least privilege, meaning that a rule must explicitly allow a user to perform an action.

Seven predefined roles are available to Azure management groups. Custom RBAC roles are not supported. This feature is the highest priority among members of the Azure Management Groups support forum, so expect to see custom RBAC definitions added in a future update.

Also, consider using Azure management groups to apply the Azure Policy service, enforcing rules onto multiple accounts in the same automatically persisting hierarchical manner as explained with RBAC.

Usage and limitations

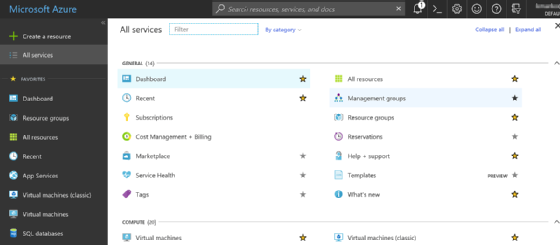

To create an Azure management group, navigate through the Azure Resource Manager portal, under the All services sidebar menu (see below). Input a unique group ID, an optional descriptive display name and the parent group (if any) under which the new group should reside. Alternatively, use Microsoft PowerShell to create a group with the Add-AzureRmManagementGroups cmdlet or the Azure command-line interface using the az account management-group create command.

azure management groups
Create Azure management groups through the Azure portal.

Management groups are subject to some limits:

  • There can be no more than 10,000 management groups in a single directory.
  • Group hierarchy can be no more than six levels deep, not counting the root level.
  • Each group and subscription can only have one parent, but can have multiple children.
  • All subscriptions and management groups exist within a single hierarchy in each directory.
  • The name and ID of the root management group are fixed by default, although admins can change the display name.
  • The user cannot move or delete the root group.

Free from subscription prescription

Azure management groups can get around limitations in the Azure subscription model that tie a user account to a particular subscription. A subscription consists of an Azure account -- used to collect service usage and billing information -- and a set of services. When the user's service needs to change, the Azure administrator must change the subscription. However, in an Azure management group, the user account is part of a group comprising multiple subscriptions, including those inherited from a parent group, not just in a one-to-one relationship.

To take advantage of the benefits of Azure management groups, plan each group structure, and study how to use RBAC definitions to manage access policies for cloud resources. If the Azure deployment is complicated, pull in the Azure Policy service alongside management groups to refine resource usage and security controls.
