Generate a Windows file server audit via PowerShell

Learn how to generate a detailed report that uncovers unusual activity by users on a Windows file share without having to manually investigate every file and folder.

Managing Windows file shares should be a routine task, but when users experience problems with their files, it gets stressful to quickly uncover what went wrong.

There's a lot of maintenance required to manage and protect file shares, from checking data with antimalware tools to locking down the access control list. But one administrative task often overlooked is how to audit activity on the file share, which can be helpful to troubleshoot issues. You can use PowerShell to automate the process to audit file share activity, then generate a report from the event logs.

How to set up Windows file server auditing

To get a complete set of data about interactions on the Windows file server, you need to audit two specific resources: the file shares and the objects in the file shares.

To start, set up the security policy with the proper type of auditing. You can do this either on the domain controller if the file server is domain-joined or directly on the file server if you are in a workgroup. Open the Group Policy Editor and navigate to Computer Configuration > Security Settings > Advanced Audit Policy Configuration > System Audit Policies - Local Group Policy Object > Object Access.

Be sure to edit Local Computer Policy, rather than the Group Policy pushed from a domain controller. The process is the same if you are in an Active Directory environment, except you edit a Group Policy assigned to the file server.

In the Object Access node, enable Audit File Share and Audit File System and select both Success and Failure.

Run the gpupdate command to apply the updated Group Policy object.

Next, set up auditing on the folder with PowerShell by installing the NTFSSecurity PowerShell module:

Install-Module NtfsSecurity

Next, set the path you want to audit to your $path variable and run the following command to enable auditing for everyone. The following code enables auditing on the D:\Share\Test folder:

$path = 'D:\Share\Test'
Add-NTFSAudit -Path $path -AccessRights FullControl -Account Everyone -AuditFlags Success -InheritanceFlags ContainerInherit,ObjectInherit -PropagationFlags None

Next, validate the settings through PowerShell.

Get-NTFSAudit -Path $path

You can also check this through the GUI by right-clicking on the folder and navigating through Properties > Security > Advanced > Auditing.

When users access that folder through a share, the security event log will record that event with a 5140 ID. An event ID of 4663 will show in the log when a file or folder is accessed.

Other relevant event IDs:

  • 5142 -- when a user adds a network share
  • 5143 -- when a user modifies a network share
  • 5144 -- when a user deletes a network share

Building the report object

To produce a useful report, PowerShell will collect the pertinent events and data from the event log. The following example uses the Get-WinEvent cmdlet to return events with an ID of 4663 or 5140 from the last week:

$events = Get-WinEvent -FilterHashtable @{
    LogName = 'Security'
    Id = 4663,5140
    StartTime = (Get-Date).AddDays(-7)
}

If you've only just turned on auditing, there might not be many events. Use the following command to get the count:

$events.Count

If you look at the message of a 5140 event, you will see it captures a lot of detail.

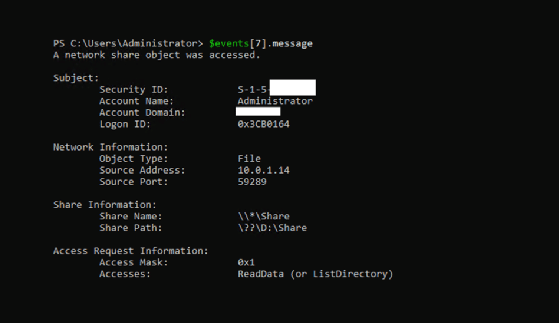

5140 security event ID
PowerShell breaks down the details from a 5140 event in the security log.

The logon ID gets generated because this is a 5140 event. In subsequent file and folder accesses, the logon ID will match in the 4663 events.

4663 Windows event ID
The logon ID in the 4663 event matches the one in the 5140 event.

This screenshot shows the 4663 event is linked to the 5140 event due to the same logon ID.

When a user accesses a file share, it generates a 5140 event. Every time a user interacts with objects in the audited folder, the system generates a 4663 event with a logon ID that matches the 5140 event.

It can be difficult to parse useful information, but the events object has a ToXML method that gives properties with names. When you convert a 5140 event to XML and look at the data, you will get a better presentation of the event data.

Windows 5140 event to XML
Convert a 5140 event to XML for a more organized look at its associated data.

The following screenshot shows the data for a 4663 event when converted to XML.

Windows event XML data
Details for the 4663 event after the conversion to XML.

You can convert this data into a hashtable for easy access.

$dataHt = @{}
$ex.Event.EventData.Data | %{$dataHt[$_.Name] = $_.'#text'}

You can now access a property by name.

$dataHt['ObjectName']

The command will return the name of the monitored shared folder.

To build the Windows file server audit report, you will want to concentrate on the following properties in the event XML:

  • SubjectLogonId
  • ObjectName (Path)
  • SubjectUserName
  • SubjectUserDomainName
  • IpAddress (if a 5140)
  • AccessList

Most of these are self-explanatory, but AccessList is more complicated. The access is stored by a schema value in the format %%4416. This value relates to the common access rights for file system objects, specifically for the right to read file data, the right to read directory data and the right to list directory contents.

You need to parse to get the four digits and then build an enum for the conversion to a string value.

enum AccessType {
    ReadData_ListDirectory = 4416
    WriteData_AddFile = 4417
    AppendData_AddSubdirectory_CreatePipeInstance = 4418
    ReadEA = 4419
    WriteEA = 4420
    Execute_Traverse = 4421
    DeleteChild = 4422
    ReadAttributes = 4423
    WriteAttributes = 4424
    DELETE = 1537
    READ_CONTROL = 1538
    WRITE_DAC = 1539
    WRITE_OWNER = 1540
    SYNCHRONIZE = 1541
    ACCESS_SYS_SEC = 1542
}

Take each event's access type and use Select-String to match the %%4416 pattern and then, for each of those groups, convert it with the enum:

$ats = foreach ($stringMatch in ($dataHt['AccessList'] | Select-String -Pattern '\%\%(?<id>\d{4})' -AllMatches)) {
    foreach ($group in $stringMatch.Matches.Groups | ?{$_.Name -eq 'id'}) {
        [AccessType]$group.Value
    }
}

For the example event, you can see that it returns the access level that was used in the event. In this case, this is a read operation:

$ats
ReadData_ListDirectory

Build the Windows file server report

With events stored in the $events variable, you can iterate through them, create the hashtable, determine the access and select the properties:

$report = foreach ($event in $events | Sort TimeCreated) {
    [xml]$ex = $event.ToXML()
    $dataHt = @{}
    $ex.Event.EventData.Data | %{$dataHt[$_.Name] = $_.'#text'}
    $ats = foreach ($stringMatch in ($dataHt['AccessList'] | Select-String -Pattern '\%\%(?<id>\d{4})' -AllMatches)) {
    foreach ($group in $stringMatch.Matches.Groups | ?{$_.Name -eq 'id'}) {
            [AccessType]$group.Value
        }
    }
    [pscustomobject]@{
        Time = $event.TimeCreated
        EventId = $event.Id
        LogonID = $dataHt['SubjectLogonId']
        Path = "$($dataHt['ObjectName'])".trim('\??\')
        Share = $dataHt['ShareName']
        User = $dataHt['SubjectUserName']
        UserDomain = $dataHt['SubjectDomainName']
        IpAddress = $dataHt['IpAddress']
        AccessType = $ats -join ', '
    }
}

Now you can look at the events in a more comprehensive way. The following screenshot shows a 4663 event:

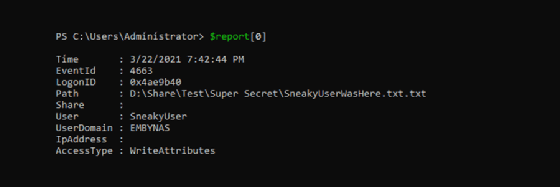

4663 event ID details
The script output narrows the details associated with the 4663 event ID.

This screenshot shows the details from a 5140 event:

5140 event ID information
Information for the 5140 event ID differs slightly from what appears for the 4663 event.

Due to how Windows events work, the same data is not present in each event type. However, because we know the IP address of the logon ID displayed in the 5140 event, we also know any following 4663 events with the same logon ID will have the same IP address. With that in mind, implement a caching hashtable:

$ipCache = @{}
$report = foreach ($event in $events | Sort TimeCreated) {
    ...
    if ($event.Id -eq 5140) {
        $ipCache[$dataHt['SubjectLogonId']] = $dataHt['IpAddress']
    } else {
        $dataHt['IpAddress'] = $ipCache[$dataHt['SubjectLogonId']]
    }
    ...
}

Every event should get an IP address, unless the original 5140 event falls outside the bounds of the date range of the Get-WinEvent command.

The final step is to filter out the IPC$ share and any local IP addresses on the file server:

$localIps = (Get-NetIPAddress).IPAddress
$report = $report | ?{$_.Share -ne '\\*\IPC$'}
$report = $report | ?{$localIps -notcontains $_.IpAddress}

Output the Windows file server audit in HTML

One of the easier ways to generate an HTML report with PowerShell is to create an object and pipe it to ConvertTo-HTML:

$report | ConvertTo-Html | Out-File C:\tmp\SimpleHtml.html

While this works, the presentation is not ideal; it is the equivalent of Format-Table, except in HTML. You will want the output to be more polished, especially if you plan to share this report with someone who is not as technical. Install the PSHTML module, which will let us produce better HTML reports:

Install-Module PSHTML

Next, build a report by grouping the data. There are multiple options, such as user, logon ID and IP address, but for this tutorial, group by path and share.

The following code groups by both types because the 4663 event does not contain a share and the 5140 event does not contain a path:

$pathGroup = $report | Group-Object Path | Where-Object {$_.Name}
$shareGroup = $report | Group-Object Share | Where-Object {$_.Name}

Make a report that creates a header for each path or share and places all the grouped events that match that path or share in a table. The following script will also build a table of contents by assigning an Id property to each path or share header:

$html = html {
    header {
        h1 {
            'Share Access Report'
        }
    }
    h2 {
        'Table of contents'
    }
    li {
        'Paths'
        foreach ($pg in $pathGroup) {
            ul {
                a -href "#$($pg.Name)" {
                    $pg.Name
                }
            }
        }
    }
    li {
        'Shares'
        foreach ($sg in $shareGroup) {
            ul {
                a -href "#$($sg.Name)" {
                    $sg.Name
                }
            }
        }
    }
    foreach ($pg in $pathGroup) {
        h2 -Id $pg.Name {
            $pg.Name
        }
        $pg.Group | ConvertTo-PSHTMLTable -Properties Time,EventId,LogonId,Path,User,UserDomain,IpAddress,AccessType
    }
    foreach ($sg in $shareGroup) {
        h2 -Id $sg.Name {
            $sg.Name
        }
        $sg.Group | ConvertTo-PSHTMLTable -Properties Time,EventId,LogonId,Share,User,UserDomain,IpAddress,AccessType
    }

}
$html | Out-File C:\tmp\test.html

The resulting report, while plain, is clear and easily navigated.

HTML file server report
The PSHTML module produces a report in HTML format with details associated with each path or share.

When you click on a path, the report shows the header that contains those events. For example, when you click MyBitcoinPrivateKey.txt, you will see the information related to that file.

file access report
When you click on a particular file, the report will show which user accessed it and when.

The report shows when SneakyUser accessed the file.

The benefits of a file server permissions report

This report is a helpful way for you to both review all of this data and to share it with people who prefer to easily navigate through the details, thanks to the HTML format. One of the advantages of using the PSHTML PowerShell module is the flexibility; with a few adjustments, you can easily group by user or by logon ID and include that information in the report.
